Single Axle Truck

The single axle truck was developed for our flat bed work car.  The goal was to manufacture a truck that had suspension, tilt and would utilize our precision bearing wheel sets.  This axle set up works well for a variety of applications.

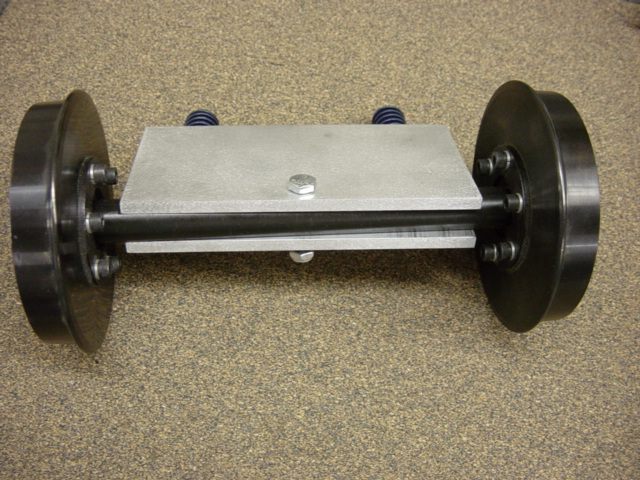

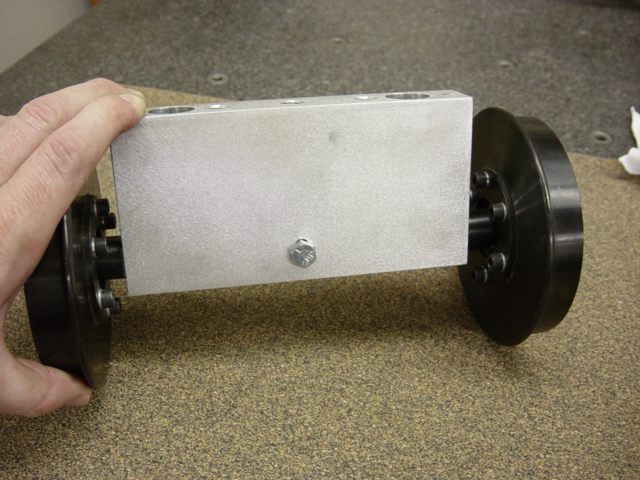

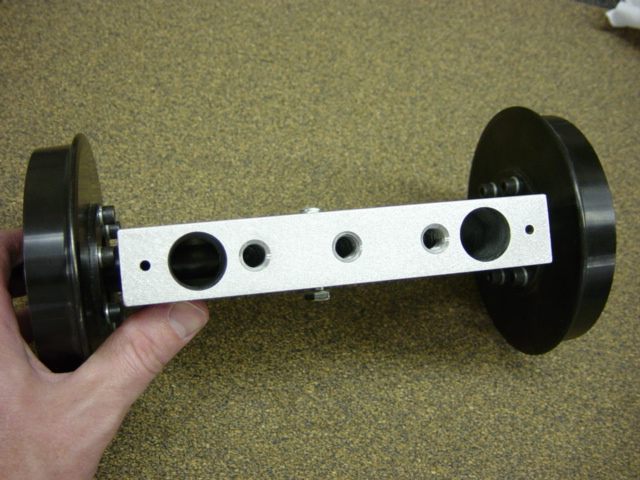

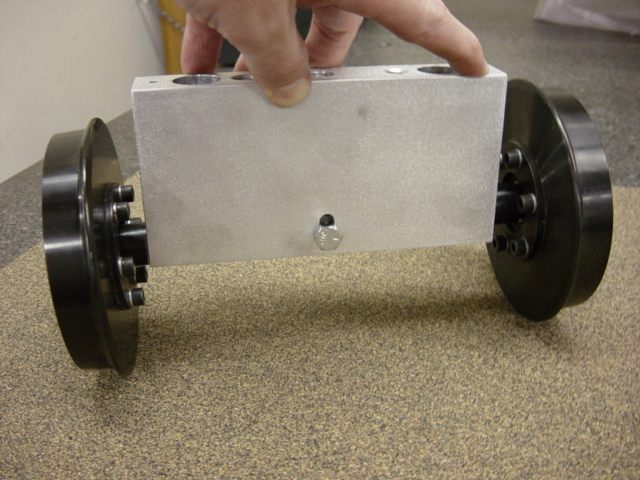

SA-Truck Parts-2.JPG (73292 bytes)SA-Truck Front - Straight-2.JPG (58809 bytes)SA-Truck Top-2.JPG (57938 bytes)SA-Truck Front - Leaning Right-2.JPG (55827 bytes)SA-Truck Bot - Leaning Left-2.JPG (72500 bytes)

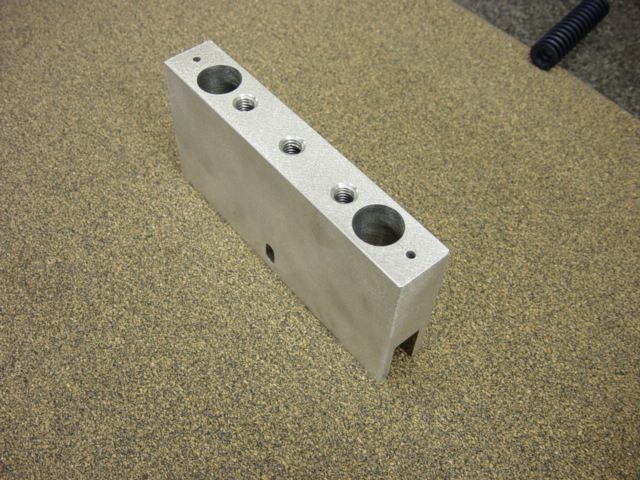

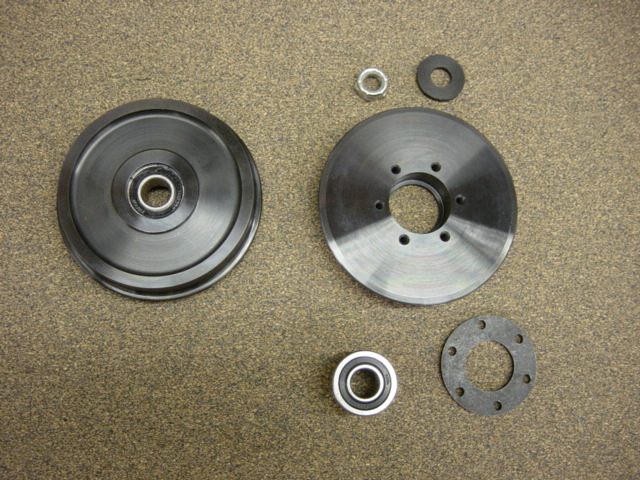

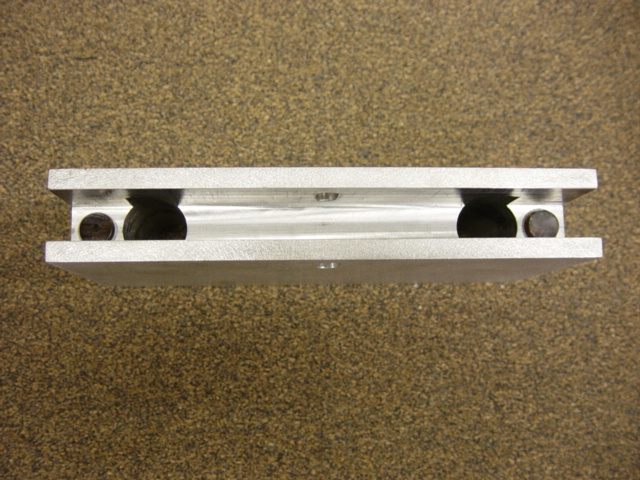

SA-Truck Wheel ASSY-2.JPG (77092 bytes)SA-Truck Body Bot-2.JPG (66304 bytes)SA-Truck Body Iso-2.JPG (76577 bytes)SA-Truck ASSY Top-2.JPG (76321 bytes)SA-Truck Front - Leaning Left-2.JPG (60539 bytes)

Click on a photo to enlarge

Pricing to come, Available Soon

Features

All components are CNC machined at our shop.

Truck body is machined from 6061 T6 Aluminum, body can be hard anodized for additional strength and wear resistance.

Axle and wheels are machined from 1144 steel, twice the tensile and yield of 1018 CRS.

High quality precision bearing are pressed into the wheels

All hardware is included



For more information contact us by email  info@railridersupply.com

or phone (562) 945-2985
